Overlay country-of-origin badges on a periodic table

Source: R/ggPSE_badge.R
ggPSE_badge.Rd

Adds country flags (via ggflags) or ISO 3166-1 alpha-2 country code text labels to element tiles. When show_legend = TRUE, a separate legend strip showing each country's flag and full name is appended using patchwork.

Usage

ggPSE_badge(
  plot = NULL,
  data,
  symbol_col = "symbol",
  country_col = "country",
  badge_size = NULL,
  hierarchy = FALSE,
  hierarchy_scale = c(1, 0.7, 0.5),
  show_legend = FALSE,
  legend_position = c("right", "left", "bottom", "top"),
  legend_size = 0.15,
  legend_flag_size = 5,
  legend_text_size = 9,
  base_size = NULL,
  x_anchor = 0.38,
  y_anchor = 0.35,
  flag_spacing = 0.38,
  badge_color = "#333333"
)

Arguments

plot

A ggplot object. If NULL a blank table is created.

data

A data frame with element symbols and country codes.

symbol_col

Character. Column containing element symbols. Default "symbol".

country_col

Character. Column containing ISO 3166-1 alpha-2 codes. Default "country".

badge_size

Numeric. Flag or text badge size. Default 3.5 for flags.

hierarchy

Logical. Scale flags by order - first country largest. Default FALSE.

hierarchy_scale

Numeric vector of length 3. Scale factors for 1st, 2nd, 3rd flag. Default c(1.0, 0.70, 0.50).

show_legend

Logical. Append a country legend. Requires patchwork. Default FALSE.

legend_position

Character. "right" (default), "left", "bottom", or "top".

legend_size

Numeric. Relative size of legend vs main plot. Default 0.15.

legend_flag_size

Numeric. Flag size in the legend. Default 5.

legend_text_size

Numeric. Text size in the legend. Default 9.

base_size

Numeric. Base font size. Default NULL.

x_anchor

Numeric. Horizontal position of rightmost flag. Default 0.38.

y_anchor

Numeric. Vertical position of flags. Default 0.35.

flag_spacing

Numeric. Spacing between flags. Default 0.38.

badge_color

Character. Text color for fallback badges. Default "#333333".

Value

A ggplot or patchwork object.

Examples

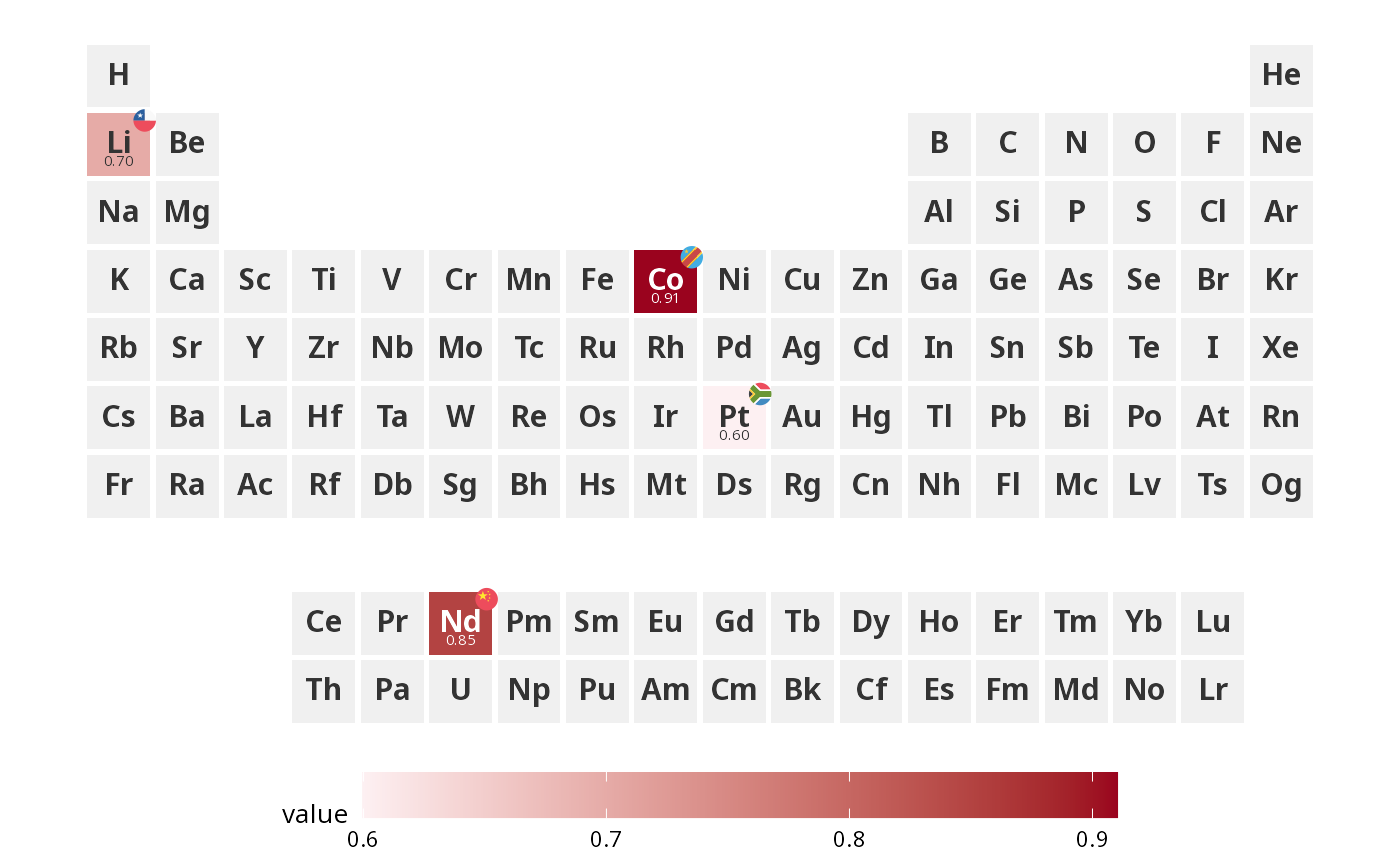

supply <- data.frame(
  symbol  = c("Li", "Co", "Nd", "Pt"),
  country = c("CL", "CD", "CN", "ZA"),
  value   = c(0.70, 0.91, 0.85, 0.60)
)
ggPSE(supply, value_col = "value") |>
  ggPSE_badge(supply, country_col = "country")


if (FALSE) { # \dontrun{
ggPSE(supply, value_col = "value") |>
  ggPSE_badge(supply, country_col = "country", show_legend = TRUE)
} # }
