Maps a continuous value to the size of a circle drawn inside each element tile. All tiles are drawn in a neutral background color so the bubbles are the primary visual signal. Useful when color is already used for another variable, or when you want to show magnitude without implying a color direction.
Usage
ggPSE_bubble(
data = NULL,
size_col = NULL,
symbol_col = "symbol",
color_na = "#ffffff",
tile_border = "transparent",
bubble_color = "#2166ac",
bubble_border = "white",
bubble_alpha = 0.85,
size_range = c(1, 9),
legend_title = NULL,
show_atomic_number = FALSE,
base_size = 10
)Arguments
- data
A data frame containing element symbols and a value column. If NULL, a blank table is drawn.
- size_col
Character. Column in data to map to bubble size.
- symbol_col
Character. Column in data containing element symbols. Default "symbol".
- color_na
Hex color for tile backgrounds. Default "#f0f0f0".
- tile_border
Hex color for tile borders. Default "transparent".
- bubble_color
Hex fill color for bubbles. Default "#2166ac".
- bubble_border
Hex border color for bubbles. Default "white".
- bubble_alpha
Numeric. Bubble opacity 0-1. Default 0.85.
- size_range
Numeric vector of length 2. Min and max bubble size. Default c(1, 9).
- legend_title
Character. Legend title. Defaults to size_col.
- show_atomic_number
Logical. Show atomic numbers. Default FALSE.
- base_size
Numeric. Base font size in pt. Default 10.

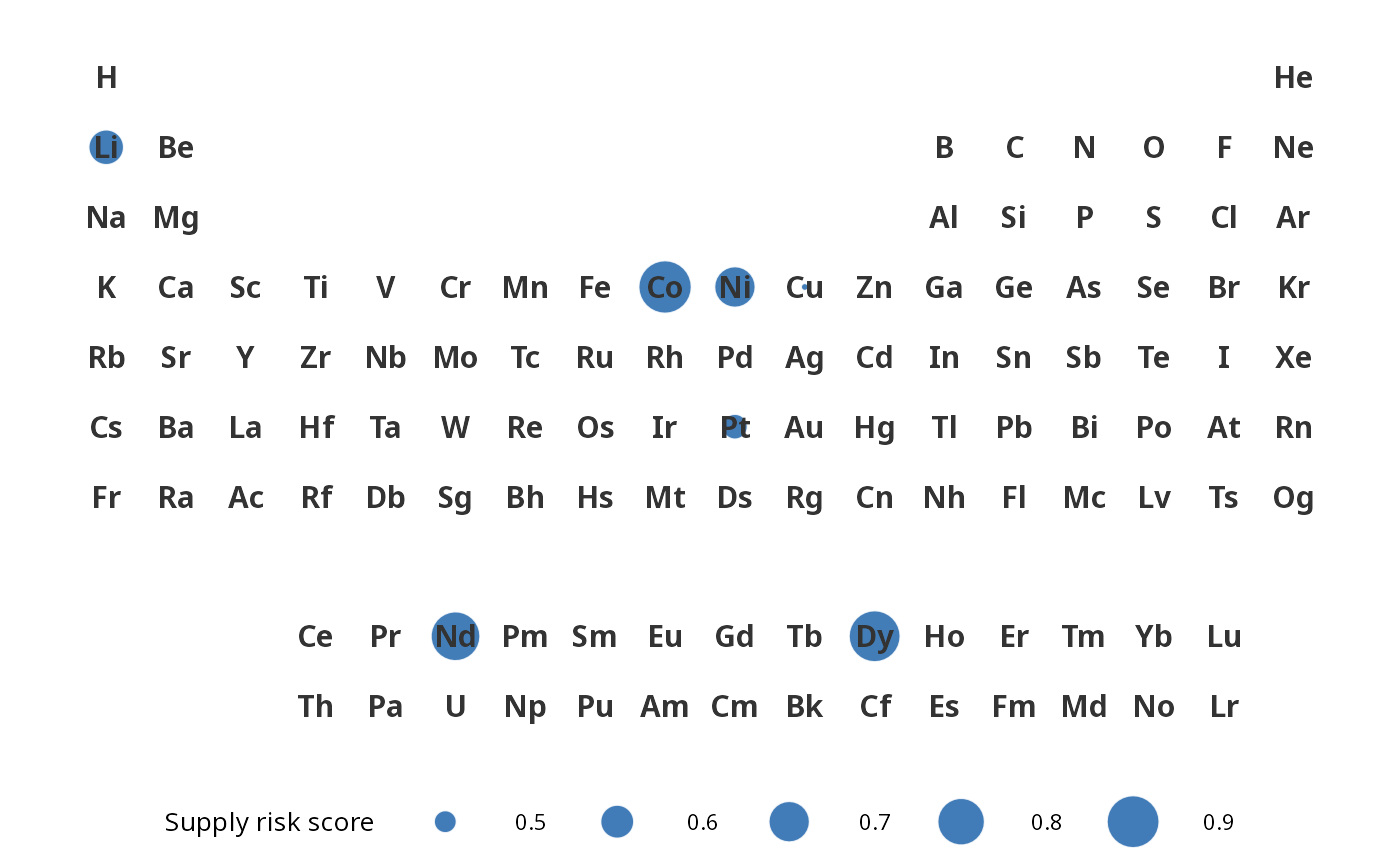

Examples
supply_risk <- data.frame(
symbol = c("Li", "Co", "Nd", "Dy", "Pt", "Ni", "Cu"),
risk = c(0.62, 0.91, 0.84, 0.88, 0.52, 0.70, 0.45)
)
ggPSE_bubble(supply_risk, size_col = "risk",
legend_title = "Supply risk score")
